When it comes to welding, achieving a high-quality weld is essential for the structural integrity and overall performance of the finished product. However, one common issue that welders often encounter is undercut. In this blog post, we will explore the concept of undercut in welding, its causes, and the impact it can have on weld quality. We’ll also delve into various methods to minimize or prevent undercut, as well as expert tips for dealing with this challenge in the welding process. Whether you’re a seasoned welder or just starting out, understanding and effectively addressing undercut is crucial for producing strong and reliable welds. So, let’s dive in and learn all about undercut in welding and how to effectively manage it.
Understanding the Concept of Undercut in Welding

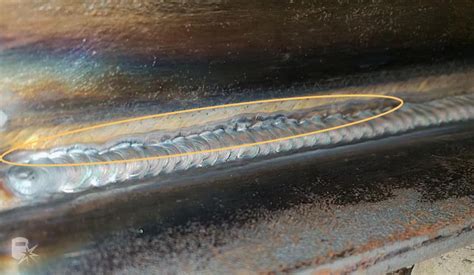

Undercut in welding refers to a groove formation at the weld toe and the base metal adjacent to it. This defect is usually undesirable as it weakens the weld and can compromise the overall quality of the joint. It is often characterized by a groove or depression along the weld toe, resulting in a cross-sectional area reduction.
One of the main causes of undercut in welding is excessive heat input. When the welding parameters are not properly controlled, excessive heat can lead to the formation of undercut. Another common cause is improper welding technique, such as a high welding travel speed or incorrect electrode angle.
The impact of undercut on weld quality can be significant. It can lead to decreased strength and ductility of the weld, making it more susceptible to failure under load. In addition, undercut can also serve as a stress riser, leading to the initiation and propagation of cracks in the weld joint.
To minimize or prevent undercut in welding, it is crucial to establish proper welding parameters and techniques. This includes optimizing the welding current, voltage, and travel speed, as well as ensuring the correct electrode angle and manipulation. It is also important to adequately prepare the base metal and use the appropriate welding consumables.
Causes of Undercut in Welding
Undercut in welding is a common issue that can have a significant impact on the quality of the weld. There are several factors that can contribute to the formation of undercut, and understanding these causes is essential for preventing and minimizing this defect.
Inadequate welding parameters such as excessive current or voltage can lead to the formation of undercut. When the welding current is too high, it can cause excessive melting of the base metal, resulting in the formation of a groove along the weld toe. Similarly, incorrect voltage settings can also lead to undercut.
Improper joint preparation can also be a cause of undercut in welding. If the base metal is not properly cleaned and prepared before welding, it can lead to contamination and the formation of undercut. In addition, inadequate bevel angles and root gaps can also contribute to the formation of undercut.
Incorrect welding technique such as weaving or oscillating the electrode too much can also result in undercut. When the electrode is moved back and forth excessively, it can cause the molten metal to flow away from the weld pool, leading to the formation of undercut. It is important for welders to use the proper welding technique to minimize the risk of undercut.
Impact of Undercut on Weld Quality
Undercut is a common welding defect that can have a significant impact on the quality of a weld. When undercut occurs, it weakens the weld joint and compromises its structural integrity. This can lead to a higher risk of weld failure and pose serious safety hazards, especially in applications where the welded part is under high stress or pressure.
Undercut can also affect the appearance of the weld, causing it to look unprofessional and potentially affecting the overall aesthetics of the finished product. This can be a concern in industries where the visual appeal of a product is important, such as in automotive or architectural applications.
In addition to weakening the weld and affecting its appearance, undercut can also make the weld more susceptible to corrosion and oxidation. This can lead to premature failure of the weld and may require more frequent maintenance and repair, increasing costs and downtime for the welded component.
Overall, the impact of undercut on weld quality is significant and should be carefully managed to ensure the integrity, safety, and longevity of the welded components.
Methods to Minimize or Prevent Undercut
When it comes to welding, undercut can be a common and frustrating issue. However, there are several methods that can be used to minimize or completely prevent this problem from occurring. One method is to adjust the welding parameters such as current, voltage, and travel speed to ensure that the heat input is consistent and adequate for the joint. By maintaining these parameters, the risk of creating undercut can be greatly reduced.
Another method to prevent undercut is to properly prepare the joint surfaces before welding. This involves cleaning the surfaces to remove any contaminants or oxides that could negatively impact the weld. Additionally, using the correct welding technique, such as weaving the electrode in a controlled manner, can help to distribute the heat more evenly and minimize the risk of undercut.
Employing the right welding equipment and consumables, such as using the appropriate electrode diameter and type, can also play a crucial role in preventing undercut. The use of high-quality materials and equipment can ensure that the welding process is carried out efficiently and effectively, reducing the likelihood of undercut occurring.
Furthermore, obtaining proper training and certification in welding techniques can also be essential in preventing undercut. By having a thorough understanding of welding processes and practices, welders can make informed decisions and take the necessary precautions to minimize the risk of undercut.
Expert Tips for Dealing with Undercut in Welding
Dealing with undercut in welding can be a challenging task, but with the right tips and techniques, it can be effectively managed to ensure high-quality welds. One of the expert tips for dealing with undercut in welding is to adjust the welding parameters, such as voltage, current, and travel speed, to minimize the likelihood of undercut formation. By carefully controlling the parameters, welders can achieve a more stable and consistent weld bead, reducing the risk of undercut.
Another important tip is to properly clean and prepare the base metal before welding. Ensuring that the surfaces are free from contaminants, such as rust, oil, and moisture, can help prevent the formation of undercut. Additionally, maintaining a consistent arc length and angle during welding can also help minimize undercut, as erratic movements can lead to uneven heat distribution and potential undercut formation.
Furthermore, using the appropriate welding technique, such as weaving or stringer bead, based on the joint design and material thickness, can help reduce the likelihood of undercut. By selecting the most suitable technique for the specific welding application, welders can effectively manage and control the weld pool, minimizing the risk of undercut.
Lastly, seeking guidance and training from experienced welders and welding experts can provide valuable insights and tips for dealing with undercut. Learning from their expertise and experiences can help welders develop the necessary skills and knowledge to effectively identify, prevent, and manage undercut in welding, ultimately ensuring high-quality and reliable welds.
Frequently Asked Questions
What is undercut in welding?
Undercut in welding refers to a groove or depression found on the base metal or parent metal next to the weld toe.
What are the causes of undercut in welding?
Causes of undercut in welding include excessive current, high welding speed, incorrect electrode angle, and improper joint preparation.
How does undercut impact weld quality?
Undercut can lead to stress concentration, decreased mechanical properties, and reduced fatigue resistance, ultimately compromising the integrity of the weld.
What are some methods to minimize or prevent undercut in welding?
To minimize or prevent undercut, one can adjust welding parameters, improve joint design, use proper electrode angles, and ensure adequate pre-weld cleaning and preparation.
What are some expert tips for dealing with undercut in welding?
Experts recommend proper training for welders, regular inspection of welding equipment, and adherence to welding procedures to effectively deal with undercut issues.
